Description

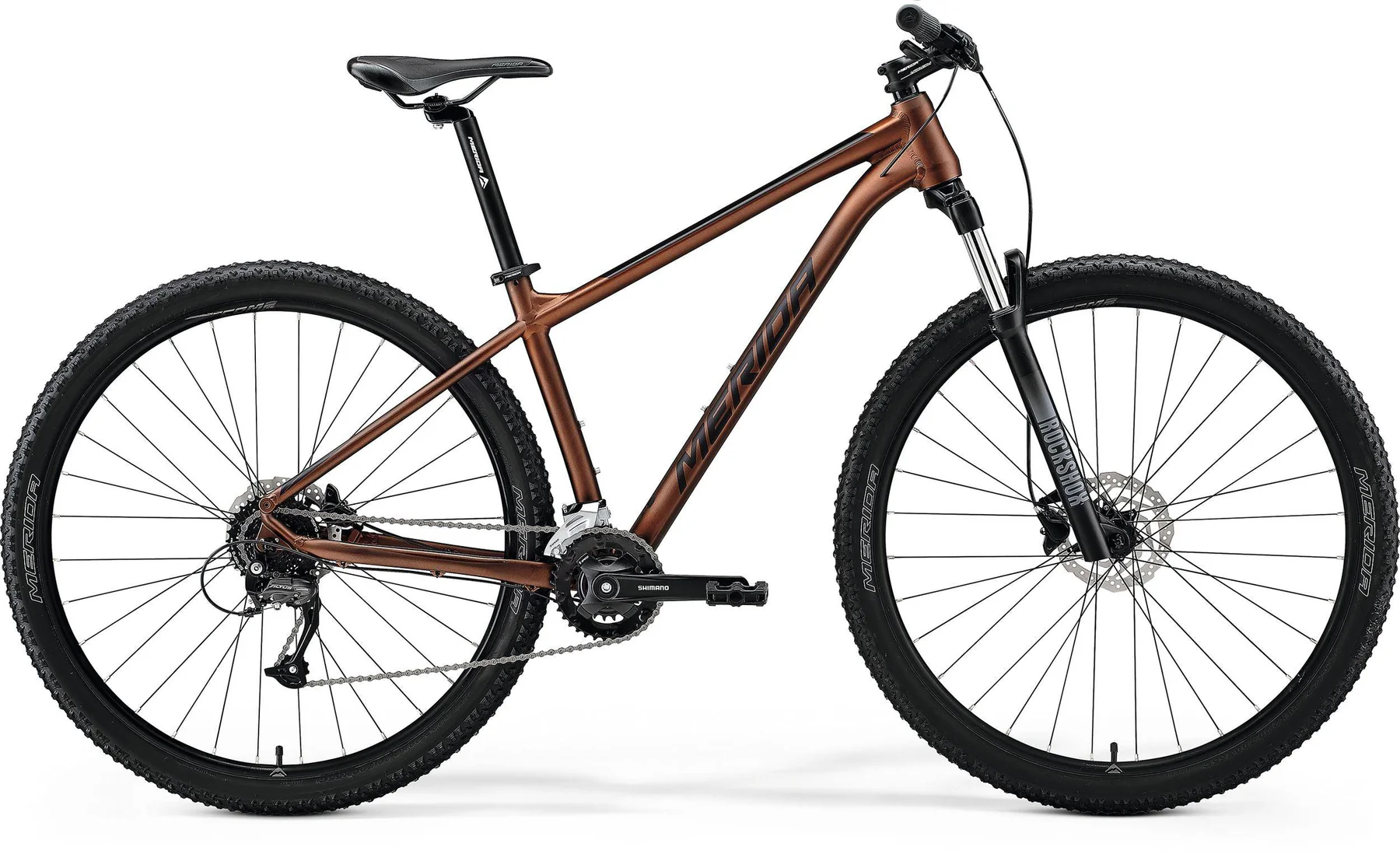

RockShox equipped aluminium 29er hardtail featuring our more comfort-focus geometry, triple chainset drivetrain and reliable hydraulic disc brakes. The perfect bike for off-road and urban jungle adventures.
FEATURES
- Double butted aluminium frame with 29er wheels
- Less aggressive and more upright geometry for maximum control and comfort
- Internal cable routing
SPECIFICATIONS
- Intended Use- Mountain
- Wheel Size- 29″
- Braking System- Power Hydraulic Brake System
- Frame Material- Aluminium
- Fork Material- Aluminium
COMPONENTS
- Frame- BIG.NINE TFS III material: aluminum 29×2.25″ max. wheelsize 135x9mm axle standard BSA bottom bracket standard
- Fork- Rock Shox Judy TK Coil 100mm suspension travel Lockout 46mm fork offset 29×2.25″ max. wheelsize
- Bottom Bracket- Shimano BB-UN100
- Chain- KMC M99
- Crank- Shimano MT101 40-30-22 teeth 170 mm-S, 175 mm-M/XXL
- Shift Levers- Shimano ST-EF505
- Cassette- Shimano CS-HG200 11-32 teeth 9 speed
- Front Derailleur- Shimano FD-M2000
- Rear Derailleur- Shimano RD-M370
- Grips/Bartape- MERIDA EC
- Handlebar- MERIDA CC material: aluminium 690mm width 15mm rise
- Stem- MERIDA CC material: aluminium 31.8mm diameter 6° stem angle 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
- Saddle- MERIDA SPORT COMFORT
- Seatpost- MERIDA CC material: aluminium 30.9mm diameter 15mm setback
- Front Brake- Power DS100 2 piston hydraulic disc brake
- Rear Brake- Power DS100 2 piston hydraulic disc brake
- Front Wheel- MERIDA CC,Shimano TX505 100x9mm width front hub 32 spoke holes Centerlock
- Rear Wheel- MERIDA CC, Shimano TX505 135x9mm width rear hub 32 spoke holes Centerlock
- Tire- MERIDA K1080 29×2.2″ wire
- Pedal- VP VPE-891
