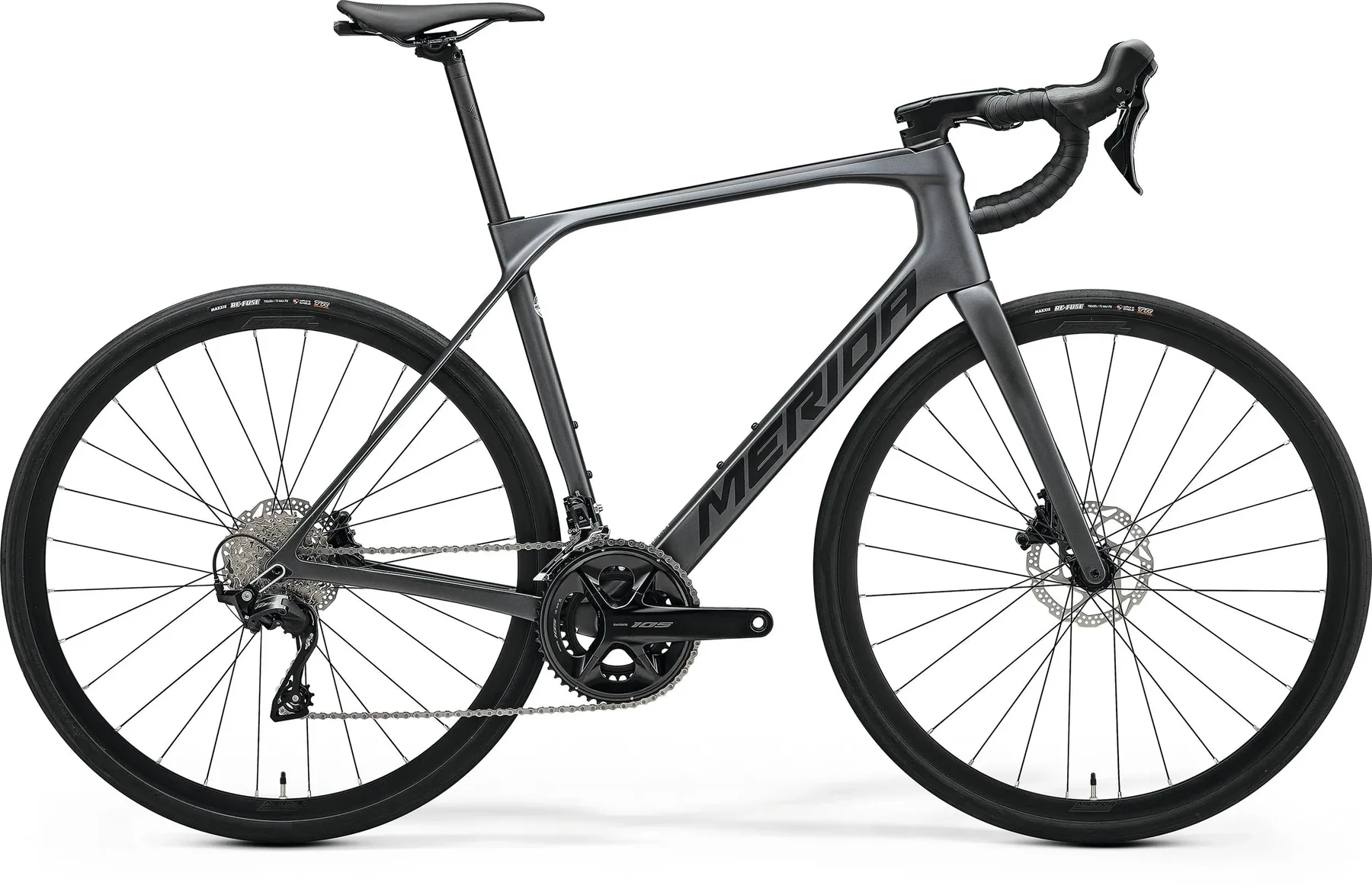

Description
he lowest-priced carbon version of our test and award-winning SCULTURA ENDURANCE concept, but a bike that can keep up with the best. Top-end carbon frame combined with the latest 105 mechanical groupset make for a virtually flawless and cost-effective package.
FEATURES
- Lightweight CF3 carbon frame with comfort orientated geometry and confidence inspiring handling
- Shimano 105 12-speed groupset
- Under-saddle pouch with MERIDA multitool
SPECIFICATIONS
- Intended Use- Endurance
- Wheel Size- 700c
- Braking System- Hydraulic Disc
- Frame Material- Carbon
- Fork Material- Carbon
COMPONENTS
- Frame- SCULTURA ENDURANCE CF3 II material: carbon 700x35C max./ 700x32C (with fender) max. wheelsize 100×12/ 142x12mm axle standard BB86 bottom bracket standard
- Fork- SCULTURA ENDURANCE CF3 DISC material: carbon 700x35C max. wheelsize
- Bottom Bracket- Shimano SM-BB72-41B Pressfit 86.5
- Chain- Shimano M6100-12
- Crank- Shimano 105 R7100 50-34 teeth 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL
- Shift Levers- Shimano 105 GS
- Cassette- Shimano 105 R7101 11-34 teeth 12 speed
- Front Derailleur- Shimano 105
- Rear Derailleur- Shimano 105 GS
- Grips/Bartape- MERIDA ROAD Expert
- Handlebar- MERIDA EXPERT SLII material: aluminum 380mm (XXS-XS) 400mm (S-M), 420mm (L-XL)
- Stem- MERIDA EXPERT SL 2PII material: aluminum -9 degree stem angle 90 mm-XXS/XS/S, 100 mm-M, 110 mm-L/XL
- Saddle- MERIDA COMP SL 28% recycled material V-mount incl. MERIDA minitool
- Seatpost- MERIDA EXPERT CC 27.2mm diameter 15mm setback Carbon
- Front Brake- Shimano 105 Hydraulic disc
- Rear Brake- Shimano 105 Hydraulic disc
- Front Wheel- MERIDA EXPERT SLII 23mm inner width 25mm height material: aluminium Tubeless ready ; Shimano HB-TC500 100x12mm width front hub 28 spoke holes Centerlock
- Rear Wheel- MERIDA EXPERT SLII 23mm inner width 25mm height material: aluminium Tubeless ready ; Shimano HB-TC500-HL 12-142mm width rear hub 28 spoke holes Centerlock
- Tire- Maxxis RE-FUSE 700x32C fold
