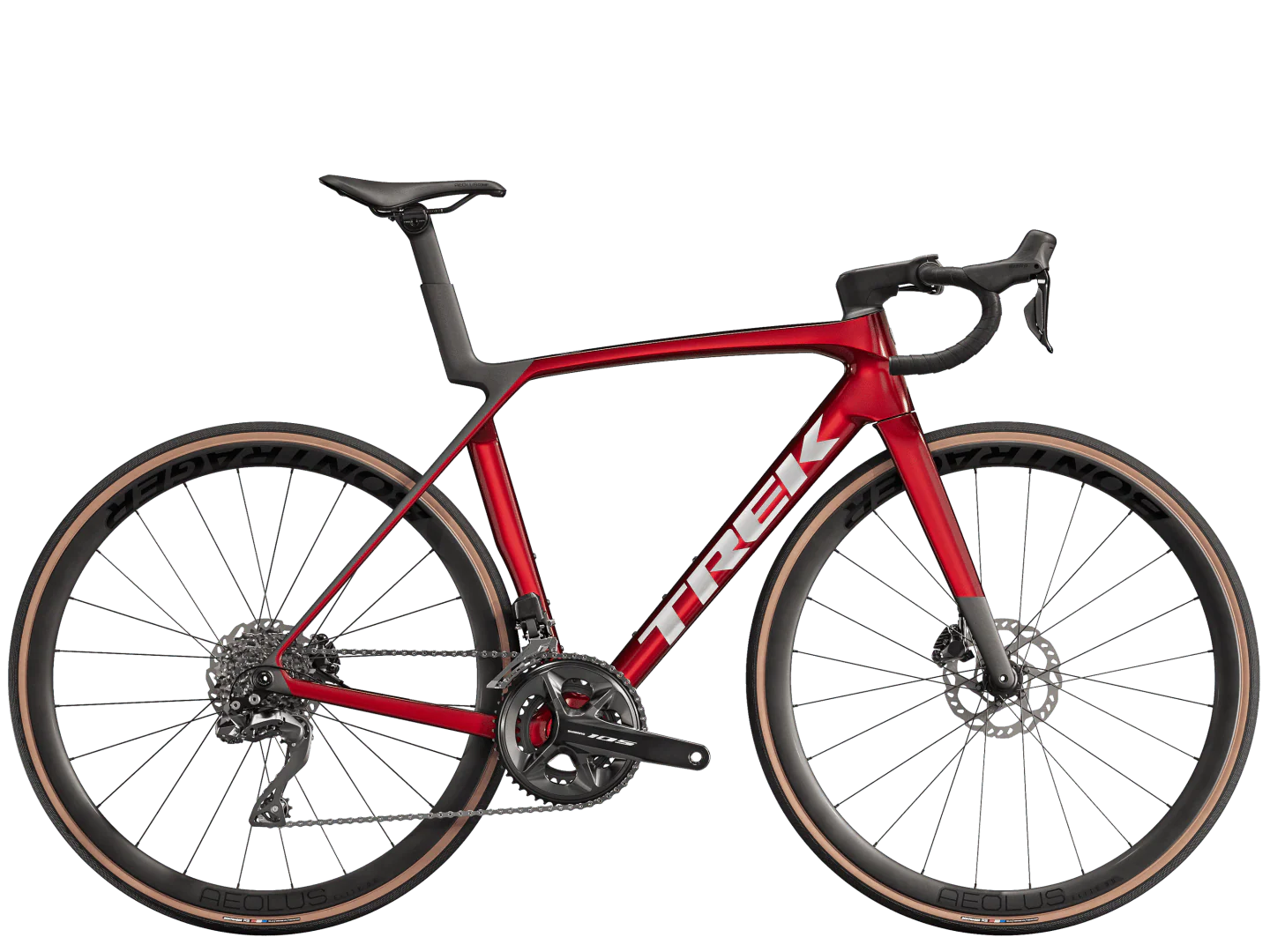

TREK MADONE SL 6 GEN 8 (CRIMSON)

Description

The Madone SL 6 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8, but with a more economical OCLV 500 Carbon lay-up and two-piece cockpit with hidden cable routing. It’s built to race with geometry that keeps you comfortable on the climbs and perched for the attack.

FEATURES

• Ultra-light OCLV 500 Carbon frame with aero tubing and IsoFlow comfort technology.
• A 2×12 Shimano 105 Di2 electronic group set that delivers clean shifts thanks to trickle-down tech.
• The Madone SL 6 Gen 8 delivers race-worth aerodynamics and climb crushing weight

SPECIFICATIONS

• Intended Use- Aero Race
• Wheel Size- 700c
• Braking System- Hydraulic Disc
• Frame Material- Carbon
• Fork Material- Carbon

COMPONENTS

• Frame- 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142×12 mm thru axle
• Fork- Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
• Bottom Bracket- Praxis, T47 threaded, internal bearing
• Chain- Shimano SLX M7100, 12-speed
• Crank- Size: S- Shimano 105 R7100, 50/34, 165 mm length / Size: M- Shimano 105 R7100, 50/34, 170 mm length / Size: ML, L- Shimano 105 R7100, 50/34, 172.5 mm length
• Shift Levers- S, M, ML, L: Shimano 105 R7170 Di2, 12-speed
• Cassette- Shimano 105 7101, 11-34, 12-speed
• Front Derailleur- Shimano 105 R7150 Di2, braze-on, down swing
• Rear Derailleur- Shimano 105 R7150 Di2, 36T max cog
• Grips/Bartape- Trek EcoTack, black
• Handlebar- Size: S, M- Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width / Size: ML, L- Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width
• Stem- Size: S, M- Trek RCS Pro, -7-degree, 90 mm length / Size: ML, L- Trek RCS Pro, -7-degree, 100 mm length
• Saddle- Size: S- Bontrager Aeolus Comp, steel rails, 155 mm width / Size: M, ML, L- Bontrager Aeolus Comp, steel rails, 145 mm width
• Seatpost- Size: S, M- Madone aero carbon seat post, 0 mm offset, short length /
  Size: ML, L- Madone aero carbon seat post, 0 mm offset, long length
• Front Brake- Shimano RT70, CentreLock, 160 mm
• Rear Brake- Shimano RT70, CentreLock, 160 mm
• Front Wheel- Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35 mm rim depth, 100×12 mm thru axle
• Rear Wheel- Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35 mm rim depth, Shimano 11/12-speed freehub, 142×12 mm thru axle
• Tire- Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700×28 mm
• Weight(Apprx)- ML – 8.16 kg
