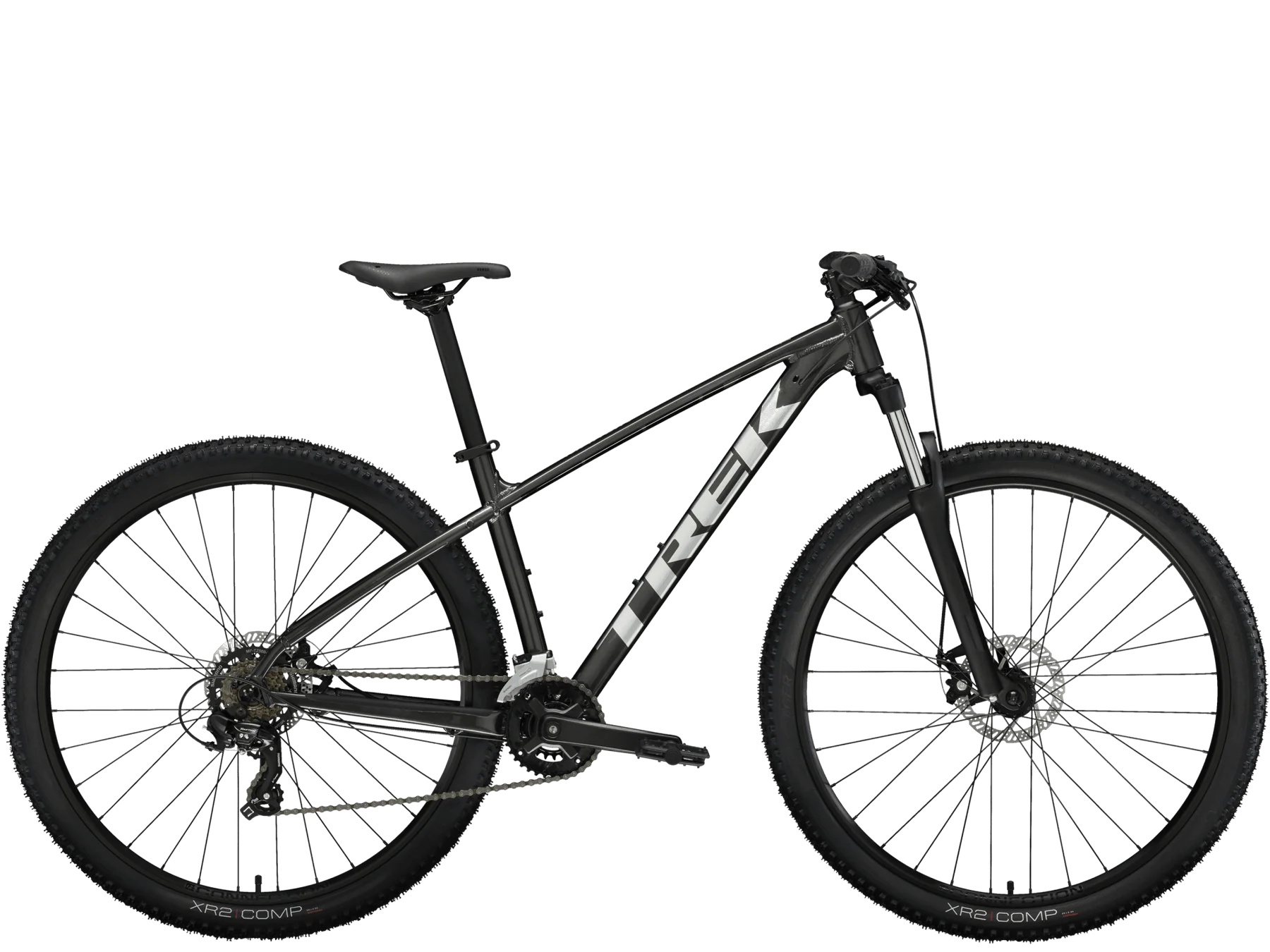

TREK MARLIN 4 GEN 2 (DNISTER BLACK)

Description

DESCRIPTION

The Marlin 4 is the gateway mountain bike that will take you from rail trails to singletrack. It’s ideal for riders who want a mountain bike with knobby tyres that can double as a rugged commuter. Disc brakes, front suspension, Shimano 14-speed shifting and mounts for a rack and mudguards make this a great bike for trail riders and campus commuters alike.

FEATURES

• Smaller frames have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily.
• Marlin comes in seven frame sizes to suit riders of any height, and Smart Wheel Size ensures you’re on the fastest wheel that fits
• Marlin looks and feels great. It’s packed with features usually found only on more expensive bikes, like a stylish frame with internal shift cable and brake hose routing, which can help your cables last longer by protecting them from the elements.
• Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride.

SPECIFICATIONS

• Intended Use- Mountain
• Wheel Size- 27.5″ or 29″
• Braking System- Mechanical Disc
• Frame Material- Aluminium
• Fork Material- Aluminium

COMPONENTS

• Frame- Size: S
  Alpha Silver Aluminium, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135×5 mm QR
  Size: M , ML , L , XL
  Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135×5 mm QR
• Fork- Size: S
  SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5″ wheel, 100 mm QR, 100 mm travel
  Size: M , ML , L , XL
  SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29″ wheel, 100 mm QR, 100 mm travel
• Bottom Bracket-VP BC73, 73 mm, threaded cartridge

• Chain- KMC Z7, 7-speed
• Crank- Size: S , M
  ProWheel TM-CY10, 36/22, 170 mm length
  Size: ML , L , XL
  ProWheel TM-CY10, 36/22, 175 mm length
• Shift Levers- Size: S , M , ML , L , XL
  Shimano EF500, 2-speed
  Size: S , M , ML , L , XL
  Shimano Altus EF500, 7-speed
• Cassette- Shimano TZ500, 14-34, 7-speed
• Front Derailleur- Shimano Altus M315, 34.9 mm clamp, top swing, dual pull

• Rear Derailleur- Shimano Tourney TY300

• Grips/Bartape- Bontrager XR Endurance Comp, lock-on
• Handlebar- Size: S
  Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
  Size: M , ML , L , XL
  Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
• Stem- Size: S
  Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
  Size: M
  Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
  Size: ML , L
  Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
  Size: XL
  Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length
• Seatpost- Size: S
  Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
  Size: M
  Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length
  Size: ML , L , XL
  Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
• Front Brake- Tektro MD-M280 mechanical disc
• Rear Brake- Tektro MD-M281 mechanical disc
• Tire- 29×2.20″ (XS & S: 27.5×2.40″)
• Pedal- NA
