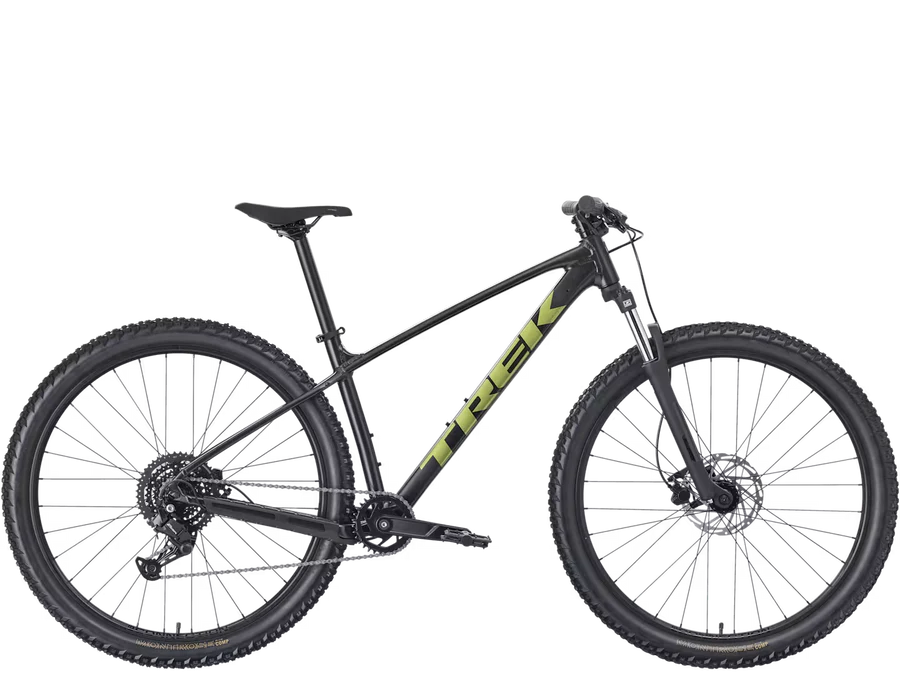

TREK MARLIN 4 GEN 3 (MATTE DARK WEB)

Description

Marlin 4 is a trail-worthy daily rider that’s perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 8-speed Shimano ESSA shifting, and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

FEATURES

• Trail-capable aluminum frame with internal routing for derailleur & dropper-post.
• Hydraulic disc brakes for powerful and consistent stopping
• Shimano 8-speed drivetrain with wide 11-45T cassette for versatile gearing
• ProWheel crankset with 32T narrow-wide chainring for improved chain retention

SPECIFICATIONS

• Intended Use- Cross Country
• Wheel Size- 27.5″
• Braking System- Hydraulic Disc
• Frame Material- Aluminium
• Fork Material- Aluminium

COMPONENTS

• Frame- Size: XXS , XS Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew Size: S , M , ML , L , XL Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

• Fork- Size: XXS SR Suntour XCM 30, coil spring, preload, hydraulic lockout, 42mm offset for 26” wheel, 100mm QR, 100mm travel Size: XS SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5” wheel, 100mm QR, 80mm travel Size: S SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5” wheel, 100mm QR, 100mm travel Size: M , ML , L , XL SR Suntour XCE 28, coil spring, preload, 46mm offset for 29” wheel, 100mm QR, 100mm travel

• Chain- KMC Z8.3, 8 speed

• Crank- Size: XXS , XS ProWheel alloy, 32T narrow-wide steel ring, 160mm length Size: S , M , ML ProWheel alloy, 32T narrow-wide steel ring, 170mm length Size: L , XL ProWheel alloy, 32T narrow-wide steel ring, 175mm length

• Shift Levers- Shimano M315, 8 speed

• Cassette- Shimano HG300, 11-45, 8 speed

• Rear Derailleur- Shimano ESSA U2000

• Grips/Bartape- Trek Line Comp, nylon lock-on

• Handlebar- Size: XXS , XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width Size: S Bontrager alloy, 31.8mm, 15mm rise, 720mm width Size: M , ML , L , XL Bontrager alloy, 31.8mm, 15mm rise, 750mm width

• Stem- Size: XXS , XS , S Bontrager Comp, 31.8mm, 7 degree, 35mm length Size: M , ML , L Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length Size: XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length

• Saddle- Bontrager Verse Short, stainless steel rails

• Seatpost- Size: XXS Bontrager alloy, 31.6mm, 12mm offset, 300mm length Size: XS , S , M Bontrager alloy, 31.6mm, 12mm offset, 330mm length Size: ML , L , XL Bontrager alloy, 31.6mm, 12mm offset, 400mm length

• Front Brake- Size: XXS , XS , S Tektro HD-M276 hydraulic disc Size: XXS , XS , S , M , ML , L , XL Power BH-M286TF hydraulic disc, 160mm rotor Size: M , ML , L , XL Tektro HD-M275 hydraulic disc Size: M , ML , L , XL Power BH-M286TF hydraulic disc, 180mm rotor

• Rear Brake- Size: XXS , XS , S Tektro HD-M276 hydraulic disc Size: XXS , XS , S , M , ML , L , XL Power BH-M286TF hydraulic disc, 160mm rotor Size: M , ML , L , XL Tektro HD-M275 hydraulic disc Size: M , ML , L , XL Power BH-M286TF hydraulic disc, 180mm rotor

• Front Wheel- Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve, Formula DC-20, alloy, 6-bolt, 100x5mm

• Rear Wheel- Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve, Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR

• Tire- Size: XXS Bontrager Montrose Comp, wire bead, 30 tpi, 26×2.35” Size: XS , S Bontrager Montrose Comp, wire bead, 30 tpi, 27.5×2.4” Size: M , ML , L , XL Bontrager Montrose Comp, wire bead, 30 tpi, 29×2.4”

• Pedal- nylon platform

• Weight(Apprx)- M – 14.90 kg
